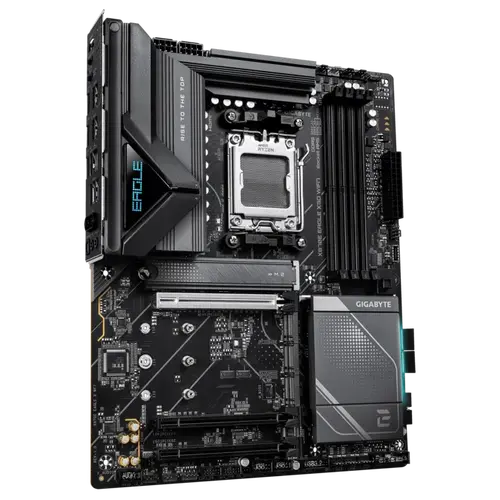

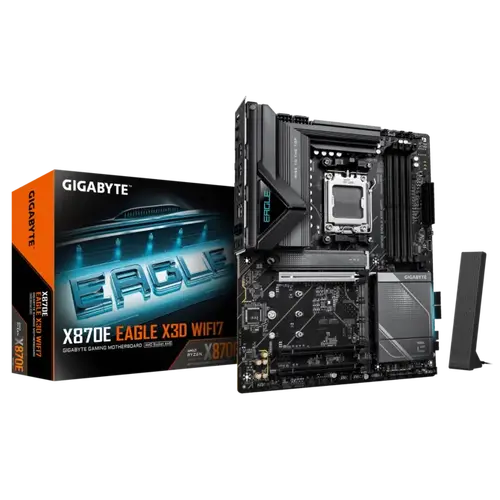

Дънна платка, GIGABYTE GB X870E EAGLE X3D WF7 / AM5

  • GIGABYTE
Дънна платка, GIGABYTE GB X870E EAGLE X3D WF7 / AM5
Цена
€299 47 / 585 71 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 39€
+2 години: + 57€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
CreditCredit
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/X870E-EAGLE-X3D-WIFI7
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Chipset
AMD X870E
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 4 x USB 3.2 Gen 1 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x noise detection header

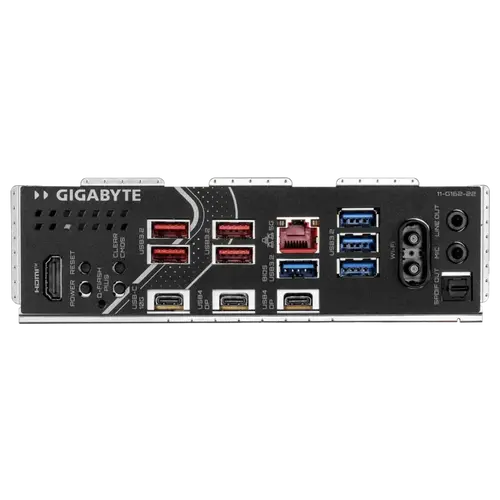

Back Panel Connectors
1 x HDMI port*
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
4 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB4® USB Type-C® ports (DisplayPort*)
1 x RJ-45 port
4 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
Bluetooth
5.4
BIOS
1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://www.gigabyte.com/Motherboard/X870E-EAGLE-X3D-WIFI7
ChipsetAMD X870E
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedAMD Socket AM5, support for:
CPU's supportedAMD Ryzen™ 9000 Series Processors/
CPU's supportedAMD Ryzen™ 8000 Series Processors/
CPU's supportedAMD Ryzen™ 7000 Series Processors
Memory typeDual channel memory architecture
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memor
Form Factor30.5cm x 24.4cm
Form FactorATX Form Factor
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioSupport for S/PDIF Out
AudioRealtek® ALC1220 CODEC
Audio* The back panel line out jack supports DSD audio.
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion Slots- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion Slots- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slots- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Expansion Slots* The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
Wireless- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Wireless- BLUETOOTH 5.4
WirelessQualcomm® Wi-Fi 7 QCNCM865
Wireless- Support for 11be 320MHz wireless standard
Graphics* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics* Support for DisplayPort 1.4 version and HDR.
Graphics- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS1 x 512 Mbit flash
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
StorageRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage4 x SATA 6Gb/s connectors
Storage- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:
Storage- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
Storage* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Storage3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
Bluetooth5.4
Connectors1 x 24-pin ATX main power connector
Connectors2 x 8-pin ATX 12V power connectors
Connectors1 x CPU fan header
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x reset button
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
ConnectorsBack Panel Connectors
Connectors4 x USB 3.2 Gen 1 ports
Connectors1 x RJ-45 port
Connectors1 x CPU fan/water cooling pump header
Connectors4 x System fan headers
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Connectors2 x antenna connectors (2T2R)
Connectors1 x USB Type-C® port, with USB 3.2 Gen 2 support
Connectors1 x HDMI port*
Connectors1 x optical S/PDIF Out connector
Connectors2 x audio jacks
Connectors4 x M.2 Socket 3 connectors
Connectors2 x USB 3.2 Gen 1 headers
Connectors1 x power button
Connectors1 x Clear CMOS button
Connectors1 x noise detection header
Connectors2 x temperature sensor headers
Connectors2 x USB4® USB Type-C® ports (DisplayPort*)
Connectors2 x system fan/water cooling pump headers
Connectors4 x USB 3.2 Gen 2 Type-A ports (red)
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
USBCPU:
USB- 4 x USB 3.2 Gen 1 ports on the back panel
USBChipset:
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
USBChipset+USB 3.2 Gen 1 Hub:
USBCPU+ASMedia USB4® controller:
USB- 2 x USB4® USB Type-C® ports on the back panel
USB- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
USB- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетAM5
Форм факторATX
ЧипсетAMD X870E
Тип паметDDR5
Слотове за памет (count)4
Максимална памет (GB)256
M.2 слотове (count)4
SATA портове (count)4
PCIe x16 слотове (count)3
Вграден Wi-FiWi-Fi 7
Скорост на LAN5 Gbps
USB-C портове (count)4
RGB подсветкаДа
Тегло0.00кг

Дънна платка GIGABYTE X870E EAGLE X3D WF7 – Отключете Екстремна Производителност

Подобрете вашето гейминг и творческо изживяване с дънната платка GIGABYTE X870E EAGLE X3D WF7. Проектирана за най-новите AMD Ryzen процесори, тази ATX мощност комбинира авангардна свързаност, стабилно захранване и усъвършенствани термични решения, за да разшири границите на производителността.

Създадена за ентусиасти, X870E EAGLE X3D WF7 предлага цялостна поддръжка за PCIe 5.0, DDR5 памет и ултра-бърз Wi-Fi 7, гарантирайки, че вашата система е готова за изискванията на бъдещите приложения и игри.

Ключови Предимства

  • Поддръжка на AMD AM5 сокет — Готова за процесори AMD Ryzen™ от серии 9000, 8000 и 7000, предлагайки несравнима изчислителна мощ.
  • Превъзходна DDR5 памет — Поддържа 4 DDR5 DIMM слота за до 256 GB двуканална памет, с поддръжка на AMD EXPO™ и XMP за екстремен овърклок.
  • Свръхбързо съхранение — Оборудвана с 4 M.2 слота, включително един PCIe 5.0 x4 за най-бързите SSD дискове, заедно с 4 SATA 6Gb/s конектора за изобилни опции за съхранение.
  • Свързаност от следващо поколение — Включва Wi-Fi 7 и 5 GbE LAN за светкавично бърза кабелна и безжична мрежа, плюс множество USB4 Type-C портове за гъвкава поддръжка на периферни устройства.
  • Здрав дизайн на захранването — Цифров двоен 14+2+2 фазов дизайн на захранването с 8-слойна печатна платка осигурява стабилно подаване на енергия за върхова производителност и стабилност при овърклок.

Технически Спецификации

СпецификацияСтойност
СокетAMD AM5
ЧипсетAMD X870E
Форм факторATX
Тип паметDDR5
Слотове за памет4 x DIMM
Максимална памет256 GB
M.2 слотове4 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4)
SATA портове4 x SATA 6Gb/s
PCIe x16 слотове3 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x2)
Скорост на LAN5 Gbps
Безжична свързаностWi-Fi 7, Bluetooth 5.4
Задни USB-C портове2 x USB4 Type-C (с DP Alt), 1 x USB 3.2 Gen 2 Type-C
Преден USB-C хедър1 x USB 3.2 Gen 2x2 Type-C
АудиоRealtek ALC1220 HD Audio
RGB подсветкаДа (RGB FUSION)

Какво има в кутията

  • Дънна платка GIGABYTE X870E EAGLE X3D WF7
  • Wi-Fi антена
  • SATA кабели
  • Ръководство за потребителя
  • Диск/USB с драйвери (ако е включен от производителя)
SKU: X870E EAGLE X WF7 © 2026 Xtreme.bg
Amazon
Kobo

Запишете се за нашият Бюлетин

Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.

Ако имате въпроси свържете се с нас!

info@xtreme.bg

+359 886 177 222

Информация

Потребител

Методи за Плащане

  • Наложен Платеж
  • Кредитна/Дебитна Карта
    MastercardVisaGoogle PayApple Pay
  • Банков Превод
  • На изплащане ПБ Лични Финанси
Copyright © 2023 Xtreme.bg - Всички права запазени. Онлайн магазин вървящ на XCore
Затвори
